High performance 600w













Quick Details

  • sage: Boat, Car, Electric Bicycle, Fan, Boat,Car,Electric Bicycle,Fan,Home Appliance
  • Certification: CE, UL
  • Type: 96v dc motor
  • Torque: 3.37Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1700rpm
  • Continuous Current(A): 8.89A
  • Output Power: 600W
  • Voltage(V): 90V
  • Efficiency: IE 2
  • G.W: 12.5kg 96v dc motor
  • carton size: 43*19*20.5cm 96v dc motor
  • insulation grade: F
  • product: 96v dc motor
  • diameter: 123mm 96v dc motor
  • type: brush motor / 96v dc motor

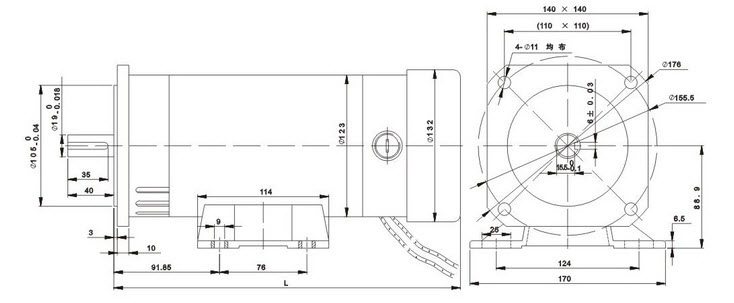

◊ Drawing

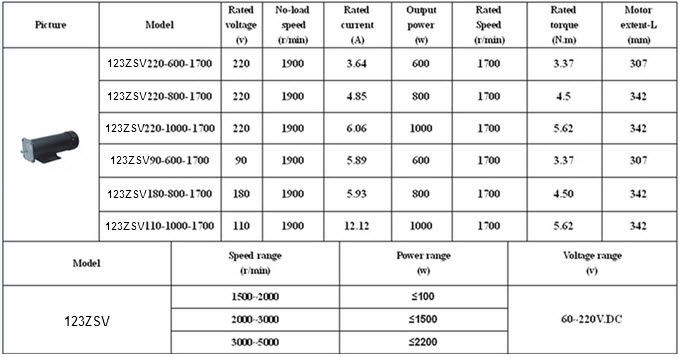

◊ Specification

◊ Model Description

123

ZSV

90

-

600

-

1700

1.

2.

3.



4.



5.


1.Body OD:123-fuselage outside diameter of 123mm

2.ZYT:ferrite permanent magnet DC motor

3.Voltage:90-90V.DC input

4.Power:600-rated output power of 600HP

5.Speed:1700-Rated speed 1700rpm
